Explore our HAPTICORE
rotary haptic actuators

Join the #HAPTICREVOLUTION &
find the perfect smart rotary haptic actuator for your application

Get your HAPTICORE Eval Kit Schedule A Free Demo

This is HAPTICORE

The smart rotary haptic actuator with programmable haptic feedback

With our patented HAPTICORE technology, we set new standards for HMI design & operation and bring together the best of both the digital and mechanical worlds. Our HAPTICORE haptic feedback knobs generate mechanical haptic force feedback to ensure a simple, safe and intuitive operation of your human-machine interfaces (HMI).

Using our software solutions, it is possible to switch between various haptic feedback patterns in real-time. And thanks to different sizes and performance characteristics, our haptic input devices can be used in a wide range of applications.

HAPTICORE Product Portfolio

Find the right rotary haptic actuator for your application

HAPTICORE 14

The image shows the HAPTICORE 14-P001X1 from a side view, providing a good overview of the entire outer casing with the additional side bearing point for operation as a thumb roller, the three screw points for cover attachment, and the adapter to plug in the connection cable.

Typical applications:

Computer Peripherals, Consumer Electronics, Smart Home Appliances

Designed for:

1 finger operation

Mounting options:

Dual mounting points

Recommended cover diameter:

Ø 17 – 30 mm

Min. coil driver supply voltage:

3 V – for tick & barrier modes

2 V – for tick modes

Additional functions:

Optional push & tilt

HAPTICORE 14 HAPTICORE 14 Eval Kit

HAPTICORE 19

Typical applications:

Home Appliances, DJ & Lighting Equipment, Consumer Electronics

Designed for:

2-3 finger operation

Mounting options:

Single mounting point with different recess levels

Recommended cover diameter:

Ø 26 – 40 mm

Min. coil driver supply voltage:

12 V – for tick & barrier modes

5 V – for tick modes

Additional functions:

Integrated push

HAPTICORE 19

HAPTICORE 34

The picture shows three different HAPTICORE 34 rotary haptic actuators without their metal covers.

Typical applications:

Home Appliances, Consumer Electronics, Construction & Farming Equipment

Designed for:

3 finger operation

Mounting options:

Single mounting point with different recess levels

Recommended cover diameter:

Ø 44 – 57 mm

Min. coil driver supply voltage:

12 V – for tick & barrier modes

5 V – for tick modes

Additional functions:

Integrated push

HAPTICORE 34 HAPTICORE 34 Eval Kit

HAPTICORE 40

HAPTICORE 34-P002X3 high-performance rotary haptic actuator without a mounted cover. The actuator features a reinforced metal shaft and a metal outer casing, making it the perfect choice for heavy-duty applications such as industrial machinery.

Typical applications:

Industrial Machinery,
Heavy-Duty Applications

Designed for:

5 finger operation

Mounting options:

Single mounting points

Recommended cover diameter:

Ø 48 mm

Min. coil driver supply voltage:

12 V – for tick & barrier modes

5 V – for tick modes

Additional functions:

Integrated push

HAPTICORE 40 HAPTICORE 40 Eval Kit

HAPTICORE Smart Knob

Perfectly combining
visual and haptic feedback

Years of experience and exchanges with partners and customers have proven repeatedly: A truly intuitive HMI needs to be designed holistically and appeal to multiple senses. To address this challenge and offer our customers a single, compact, and fully customizable input device, we developed the HAPTICORE smart knob.

Learn more
The image shows the HAPTICORE 14-P001X1 from a side view, providing a good overview of the entire outer casing with the additional side bearing point for operation as a thumb roller, the three screw points for cover attachment, and the adapter to plug in the connection cable.

HAPTICORE 14

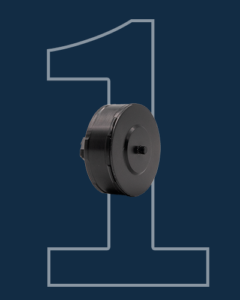

With a diameter of 14 mm and a weight of just 8.2 grams, HAPTICORE 14 is our smallest rotary actuator. The haptic feedback input device is designed as a thumb wheel. However, thanks to its small form factor and various covers and gearing options, it offers a wide range of applications, such as use as an adaptive trigger or slider. The HAPTICORE 14 is designed for single-finger operation and the low base torque of less than 1mNm ensures comfortable operation, even during long-term usage.

HAPTICORE 14 HAPTICORE 14 Eval Kit

Available HAPTICORE 14 Products

HAPTICORE 14-P001

Follow a manual added link
The picture shows the HAPTICORE 14 from the top and thus gives a good view of the adapter and the second bearing position as the rotary haptic actuator features two mounting points.

HAPTICORE 14-P001X1

HAPTICORE 19

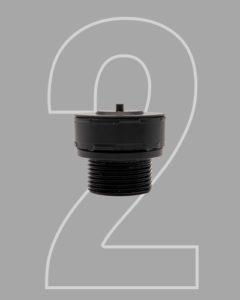

Thanks to its compact design combined with strong haptic feedback, optimized for 2-3 finger operation, the HAPTICORE 19 is more versatile than any other rotary haptic actuator. With different installation depths, customizable covers, and access to all haptic feedback modes from ticks to barriers to adaptive modes such as speed adaptivity, it is the perfect choice to make the operation of your HMI simple, safe, and intuitive.

HAPTICORE 19
The picture shows three different HAPTICORE 34 rotary haptic actuators without their metal covers.

HAPTICORE 34

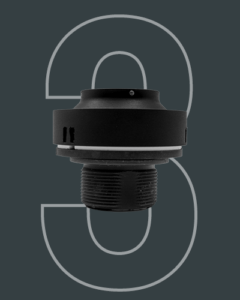

Experience the HAPTICORE 34 – the all-rounder in our haptic knob product portfolio. Thanks to its customizable design and adjustable performance, the HAPTICORE 34 can be integrated as a haptic input device for modern HMI designs in almost any application. Designed for multi-finger to full-hand operation, our HAPTICORE 34 rotary switches generate strong haptic force feedback for a more intuitive and secure operation.

HAPTICORE 34 HAPTICORE 34 Eval Kit

Available HAPTICORE 34 Products

HAPTICORE 34-P001

Follow a manual added link
HAPTICORE 34-P001X1 rotary haptic actuator for applications such as construction & farming equipment, or industrial machinery without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P001X1

Follow a manual added link
HAPTICORE 34-P001X2 rotary haptic actuator for applications such as construction & farming equipment, or industrial machinery without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P001X2

Follow a manual added link
HAPTICORE 34-P001X3 rotary haptic actuator for applications such as construction & farming equipment, or industrial machinery without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P001X3

HAPTICORE 34-P002

Follow a manual added link
HAPTICORE 34-P002X1 rotary haptic actuator for applications such as home appliances, consumer electronics, or DJ & lighting equipment without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P002X1

Follow a manual added link
HAPTICORE 34-P002X2 rotary haptic actuator for applications such as home appliances, consumer electronics, or DJ & lighting equipment without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P002X2

Follow a manual added link
HAPTICORE 34-P002X3 rotary haptic actuator for applications such as home appliances, consumer electronics, or DJ & lighting equipment without mounted cover. The picture shows the black actuator with a cover adapter at the top, a thread to fasten the actuator with a nut, and its white 6-pin adapter for power supply.

HAPTICORE 34-P002X3

HAPTICORE 34-P002X3 high-performance rotary haptic actuator without a mounted cover. The actuator features a reinforced metal shaft and a metal outer casing, making it the perfect choice for heavy-duty applications such as industrial machinery.

HAPTICORE 40

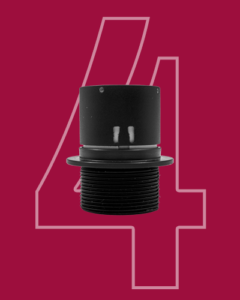

The HAPTICORE 40 is our high-performance rotary switch providing strong haptic feedback for the whole hand or even gloved operation. Its extra robust design and reinforced shaft for particularly strong fixation ensure safe operation even in highly demanding environments and applications such as industrial machinery.

HAPTICORE 40 HAPTICORE 40 Eval Kit

Available HAPTICORE 40 Products

HAPTICORE 40-P001

Follow a manual added link
HAPTICORE 34-P002X3 high-performance rotary haptic actuator without a mounted cover. The actuator features a reinforced metal shaft and a metal outer casing, making it the perfect choice for heavy-duty applications such as industrial machinery.

HAPTICORE 40-P001X1

Try it now!

HAPTICORE Eval Kits

Experience the immersive haptic feedback of our haptic input devices firsthand with the HAPTICORE Eval Kits.

With our evaluation & development kits, you can easily integrate our haptic technology into your functional prototyping projects, replace conventional controls and overcome the limitations of traditional UI design.

HAPTICORE Eval Kits
Image of the HAPTICORE Eval Kits, our evaluation & development kits, consisting of a rotary haptic actuator, mounted in a metal stand and equipped with a metal cover to use the HAPTICORE 14 as a scroll wheel and the HAPTICORE 40 as a rotary switch.

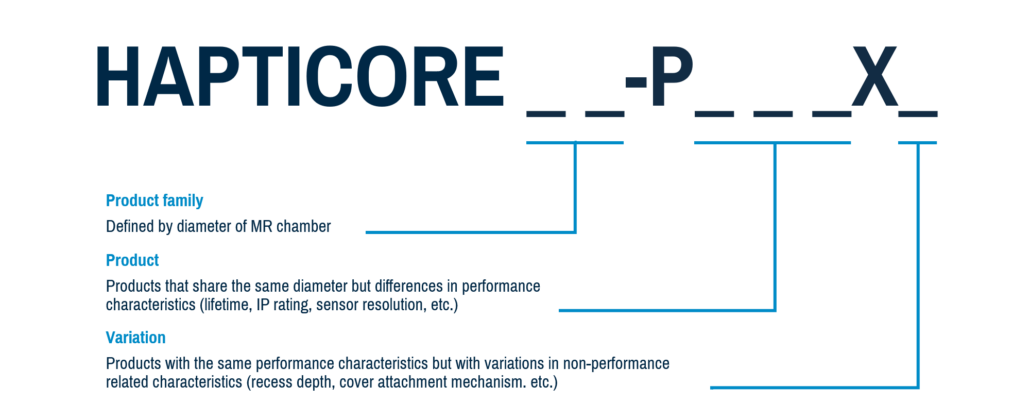

Product terminology

The HAPTICORE product terminology is based on three parameters: the product family, which is determined by the diameter of the MR chamber of the rotary haptic actuator (e.g. HAPTICORE 34, as the MR chamber of the actuator is 34 mm wide), the product number, which groups together products with the same performance characteristics (e.g. IP rating, lifetime, sensor resolution, etc.), and the variation, which distinguishes between products with the same performance characteristics but different characteristics such as recess depth or cover attachment mechanism. This enables us to make a clear and plausible distinction between, for example, the HAPTICORE 34-P001X3 and the HAPTICORE 34-P002X1.

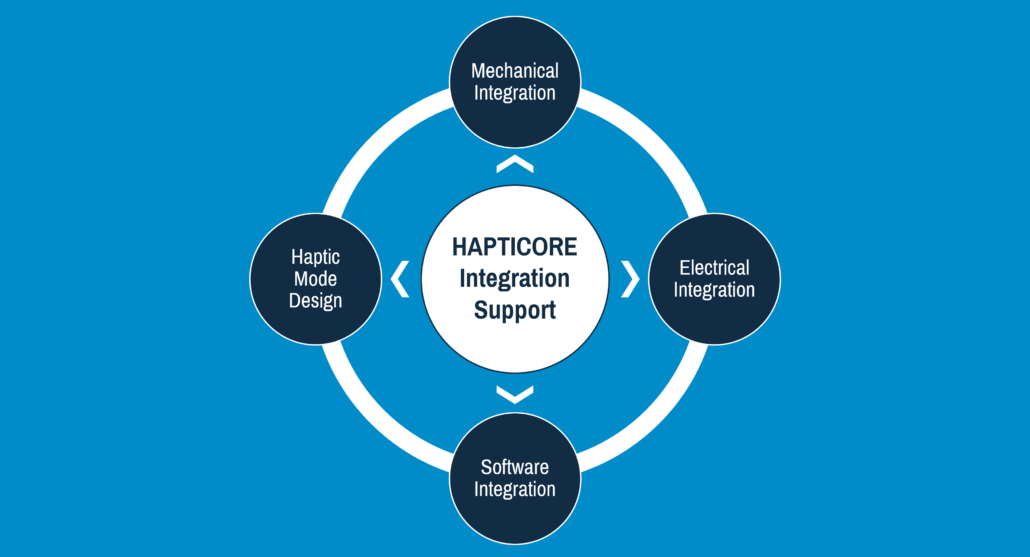

HAPTICORE integration process

Excellent support

from prototyping to implementation

From the first tests with the HAPTICORE Eval Kits to serial production, our experienced customer interaction team is available for you.

In addition, we provide you with all the necessary information and our easy-to-use software solutions. This way, you easily get started in the world of freely programmable haptics.

HAPTICORE Support

Schedule a Free HAPTICORE Demo

Get to know HAPTICORE

Experience programmable haptic feedback

Learn how our technology works

Discover optimization potential for your HMI

Find the right HAPTICORE product for your application

You don’t want to wait? Check out our instant video tour and learn more about HAPTICORE.

Notebook showing the calender tool to schedule a free HAPTICORE demo.
